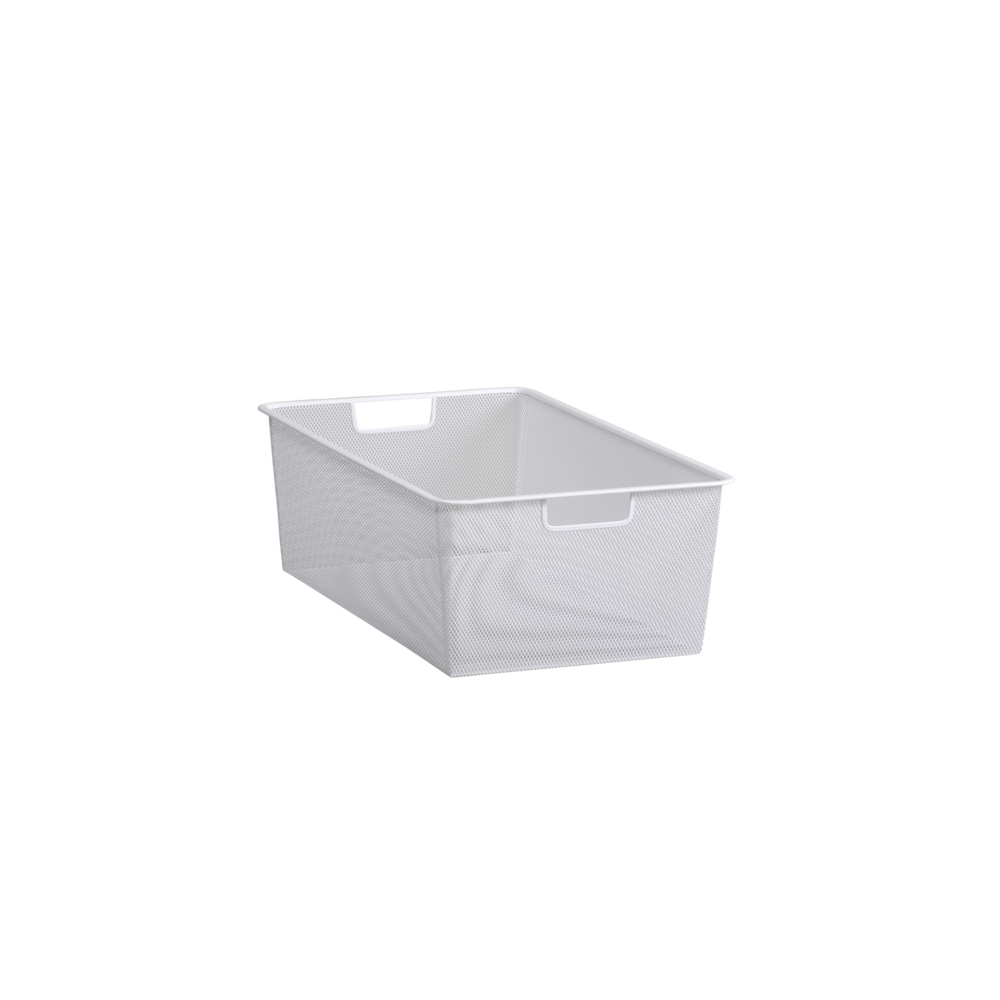

Mesh drawer

Specification

<

Specification

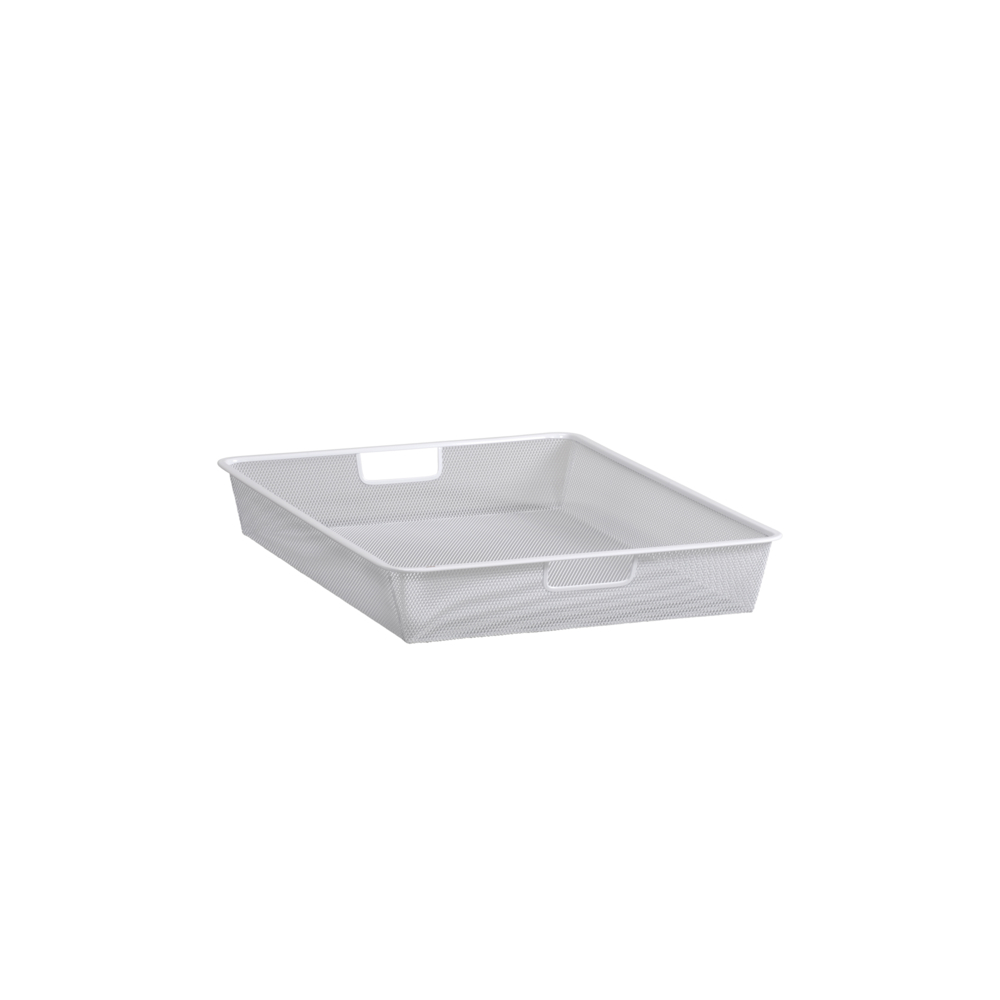

Organize your belongings with our mesh drawer, dimensionally designed to fit drawer system units. The drawer offers good ventilation and transparency, providing a clear overview of contents and preventing small items from falling through. To further enhance organization, use mesh drawer dividers.

Product LineClassic by Elfa

Article number

135290

ColorWhite

Width (mm)327

Depth (mm)527

Height185

Weight Recommendation8 kg

Technical description

<

Technical description

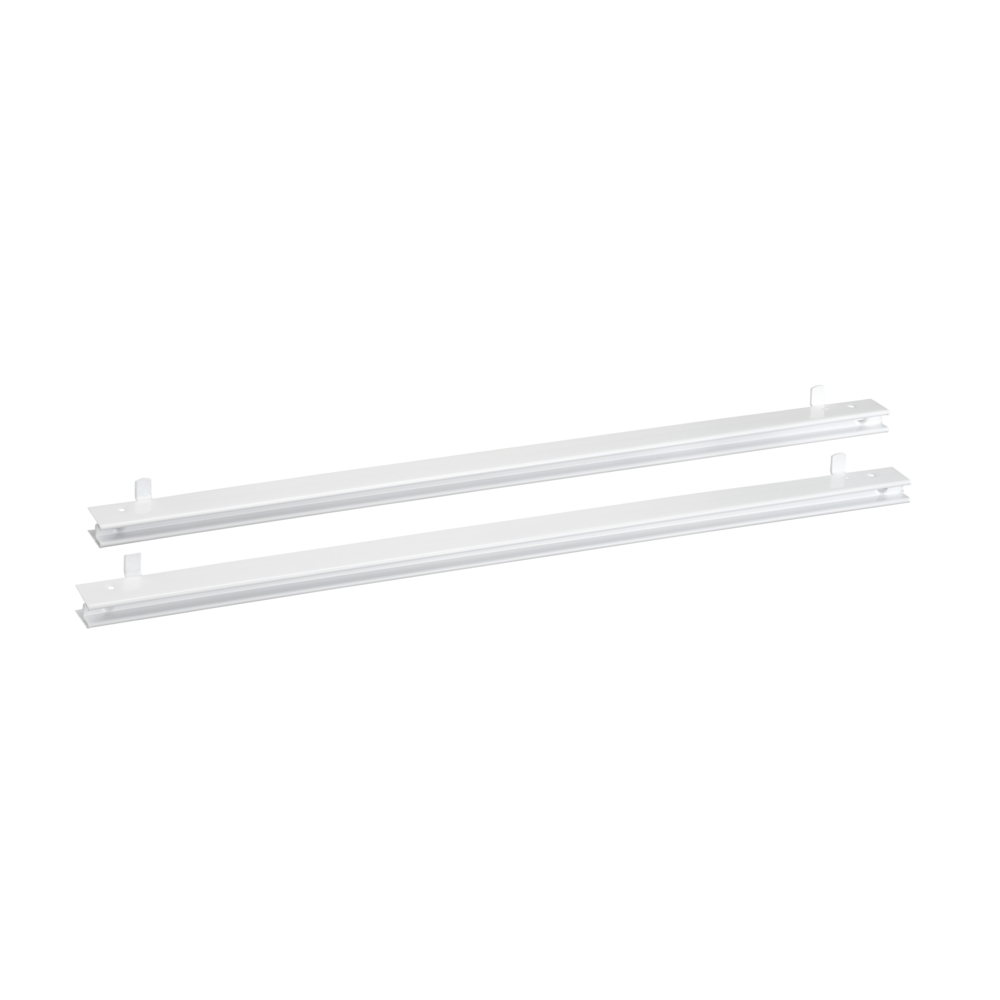

The mesh drawer easily mounts into a drawer system unit in corresponding width/depth or into a wardrobe between universal runners. Provides excellent ventilation and transparency for an easy overview.

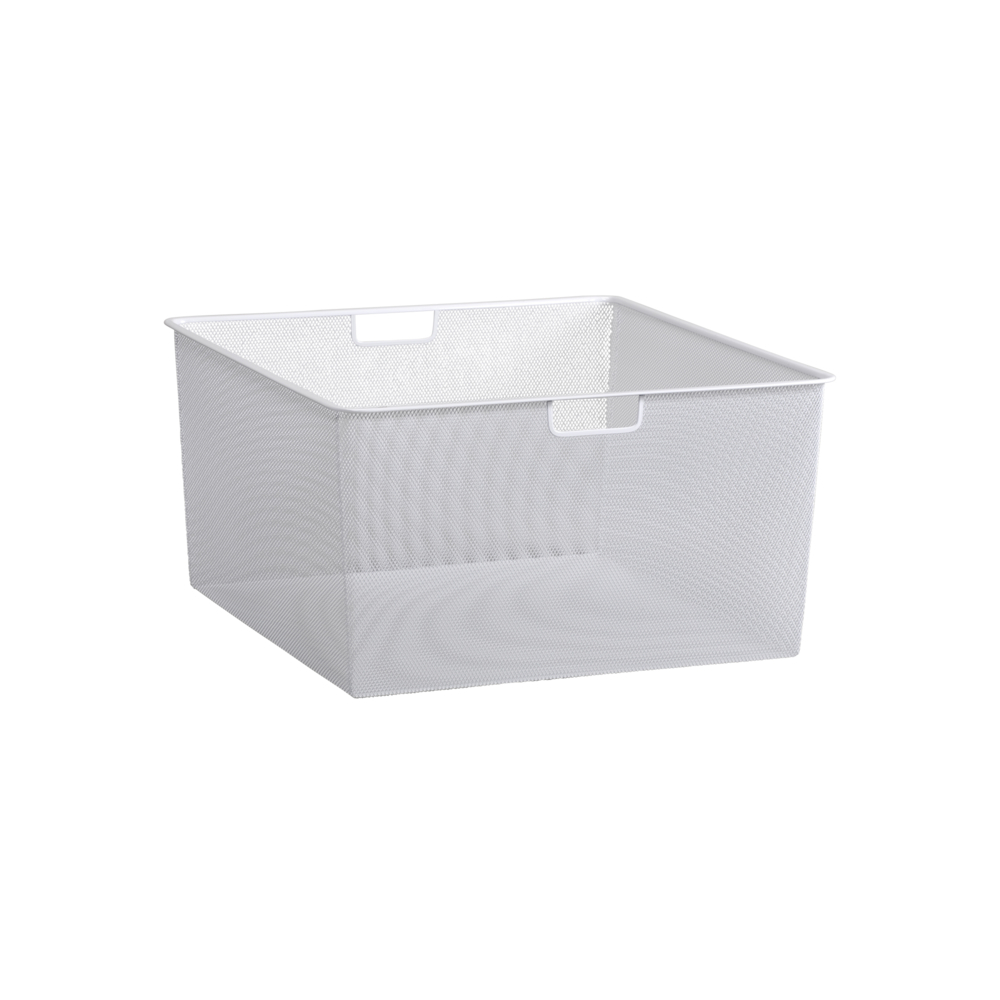

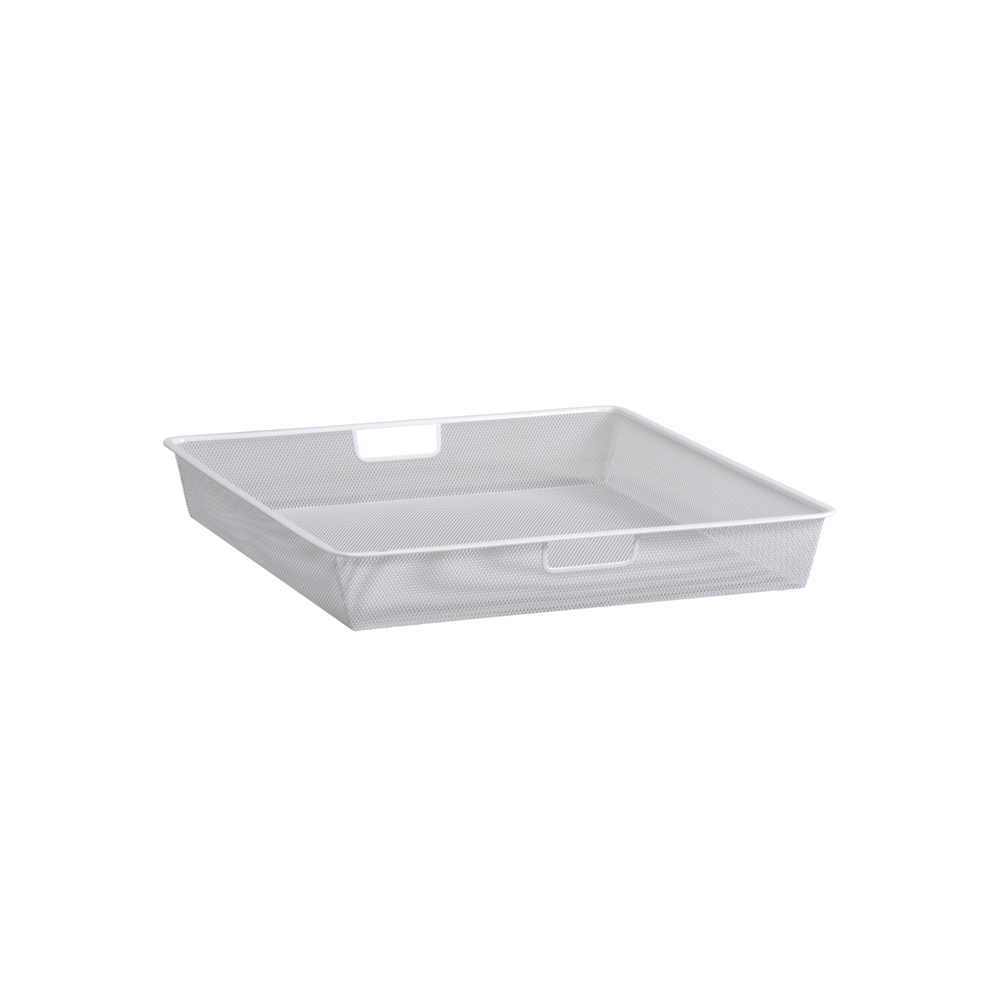

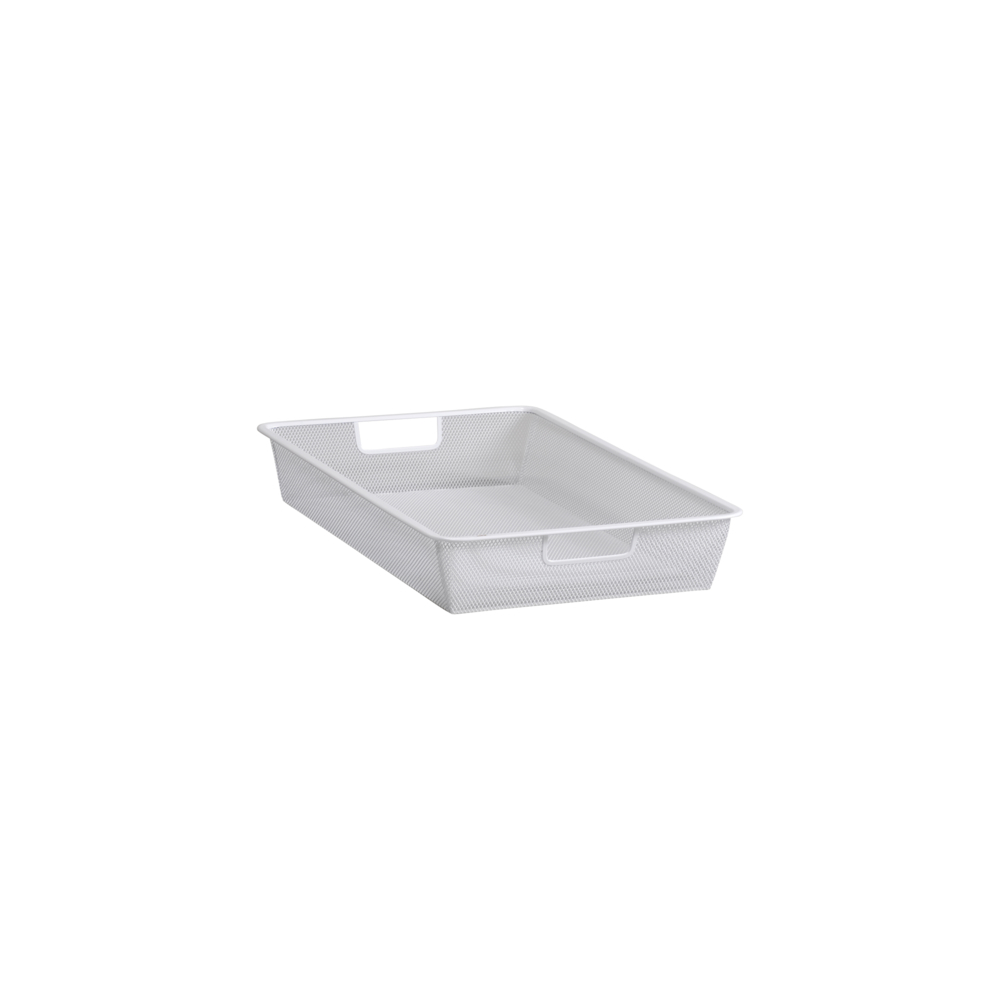

The drawer is available in different combinations regarding width, depth and height.

2 metal colours:
White, close to NCS S 0300-N, gloss around 85
“Graphite”, a unique finish close to NCS S 8000-N, gloss around 50
Note: as our finishes are metallic/mixed powder, the NCS codes/gloss aren’t exact.

Planning rules

<

Planning rules

Planning drawer system unit depths:
Standard depth is 535 mm
Mini depth is 435 mm

Planning drawer system unit heights (height without frame feet, adjustable feet or casters):
4-runner: 440 mm
7-runner: 740 mm
10-runner: 1040 mm

When stacking drawer system units on top of each other, 30 mm is subtracted from the total height. For example:
440 mm + 440 mm = 880 mm – 30 mm = 850 mm.

Adding frame feet increases the total height by 2 mm.
Adding casters increases the total height by 77 mm.
Adding adjustable frame feet increases the total height by 50-63 mm.

Width:

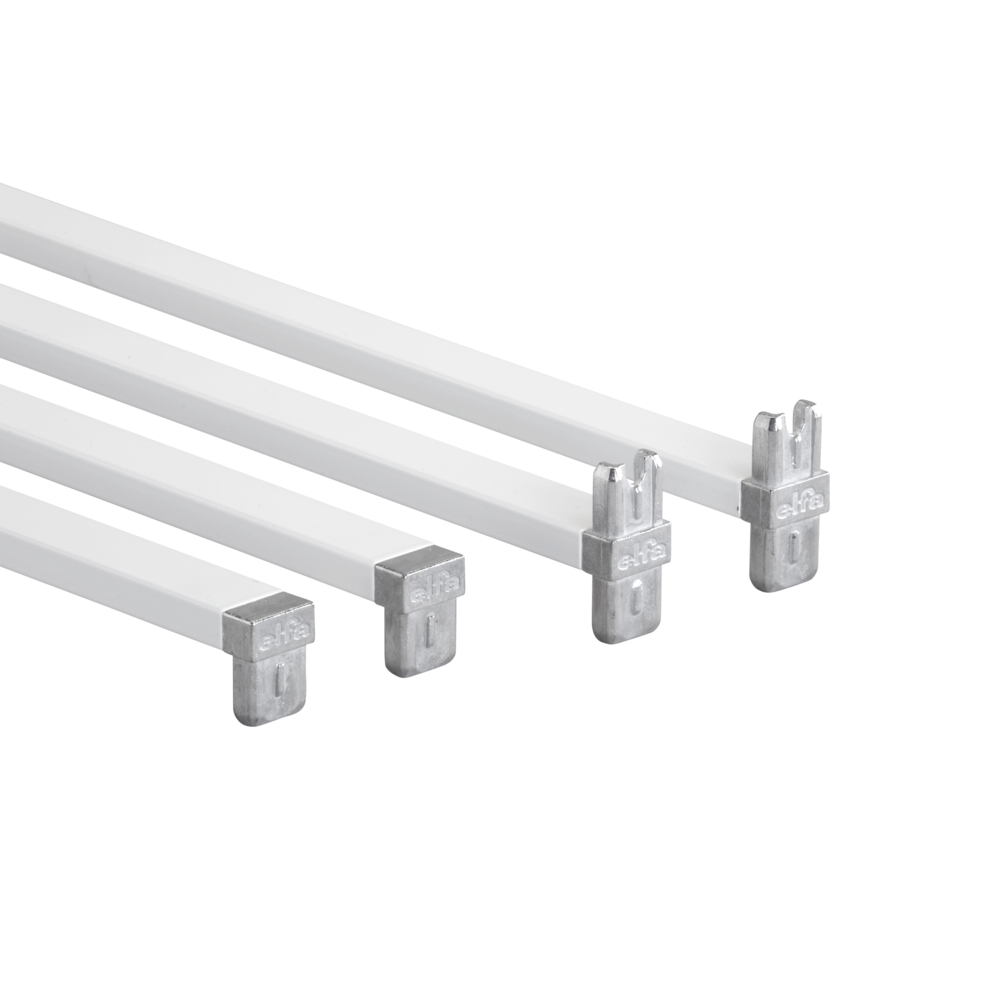

The following drawers and crossbars are available for drawer system units – Standard and Mini:
W: 35
W: 45
W: 55

Safety and care

<

Safety and care

Safety

Note! Do not place Elfa products in direct contact with water.

Care

Wipe clean with a cloth dampered with a mild cleaner. Wipe dry with a clean cloth.

Assembly Instructions

<

Assembly Instructions

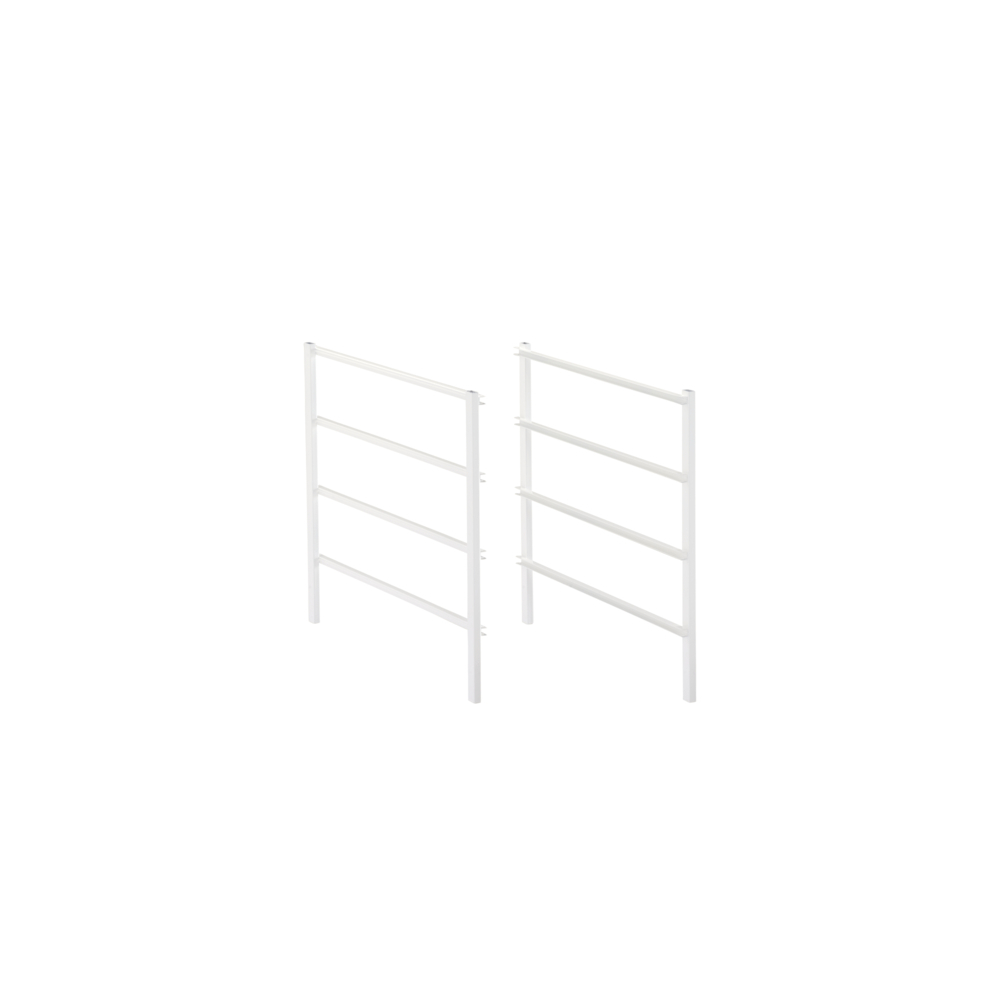

Before you start: Finish assembling the drawer system units (with frame sides and crossbars) or your runners (if you are assembling into a wardrobe).

Slide in the drawers into the runners.

If you are asembling drawers into a drawer system: Add an in/out stop in order from keeping your drawer from pulling completely out.

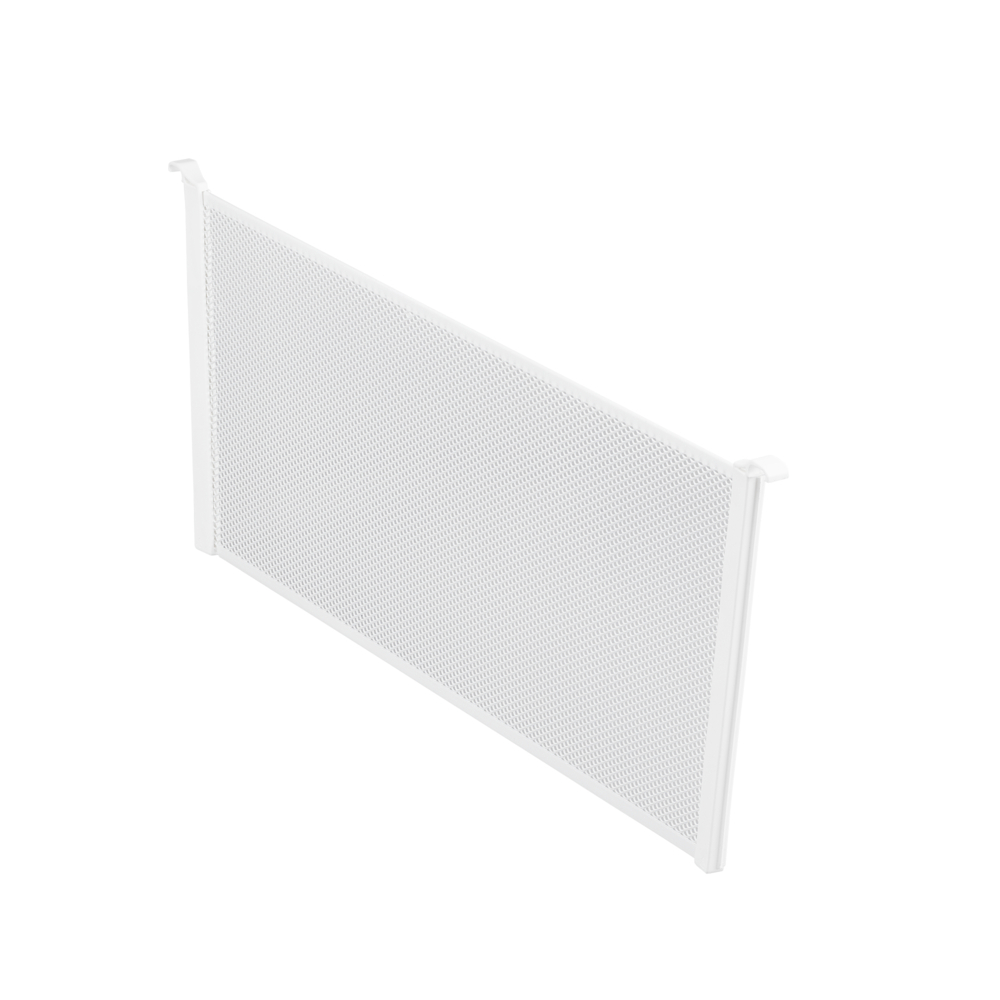

Tip: If you have mesh drawer dividers to be added, assemble these before sliding in the mesh drawers into the drawer system unit.
