Shelving Plug-in kit Graphite

You need the following to assemble: Screwdriver/drilling machine, leveller.

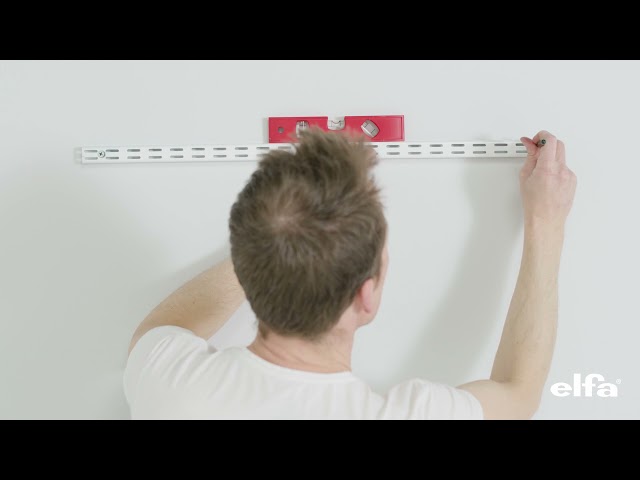

Step 1: Position the first wallband. Make sure that the wallband is straight and mark the screw holes. Fasten the wallband in the upper screw hole, but do not tighten too hard.

Step 2: Rotate the wallband 90 degrees upward, using it as a “spacer”, to get the correct positioning for the other screw holes. In this way it’s very easy to get, and verify, a correct ‘square’ on the wall. Once you have secured that the wallbands are level, attach both wallbands to the wall with adequate screws.

Step 3-4: Place the pins into the bracket – the short pin for the front of the bracket and the longer pin for the rear part of the bracket. The “tower” on the pins should lean towards the back of the bracket. Turn the bracket and use a firm support in order to be able to attach the plug onto the pin. The “plate” of the pin should be level with the upper part of the bracket when assembled correctly.

Step 5: Attach the brackets. Make sure that the are placed in the corresponding slots. A tip is to place the brackets so they cover the screw holes in the wallband. Mount the shelves, so that they click onto the bracket pins.

Step 6: Your shelving solution is ready!
