METAL FRAME

Estetic

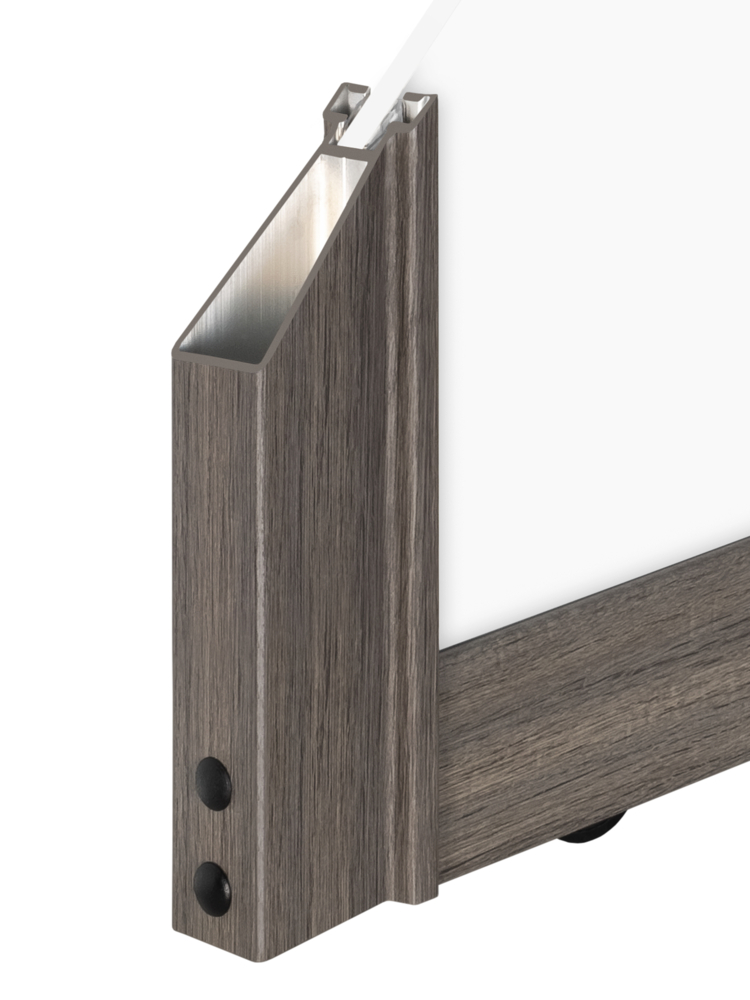

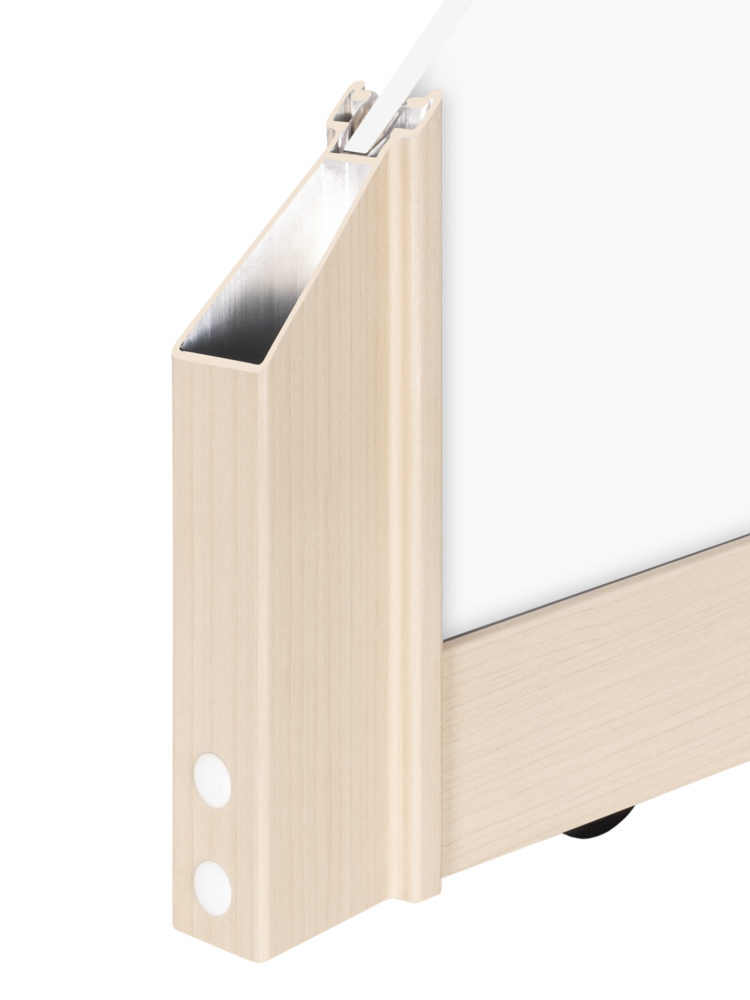

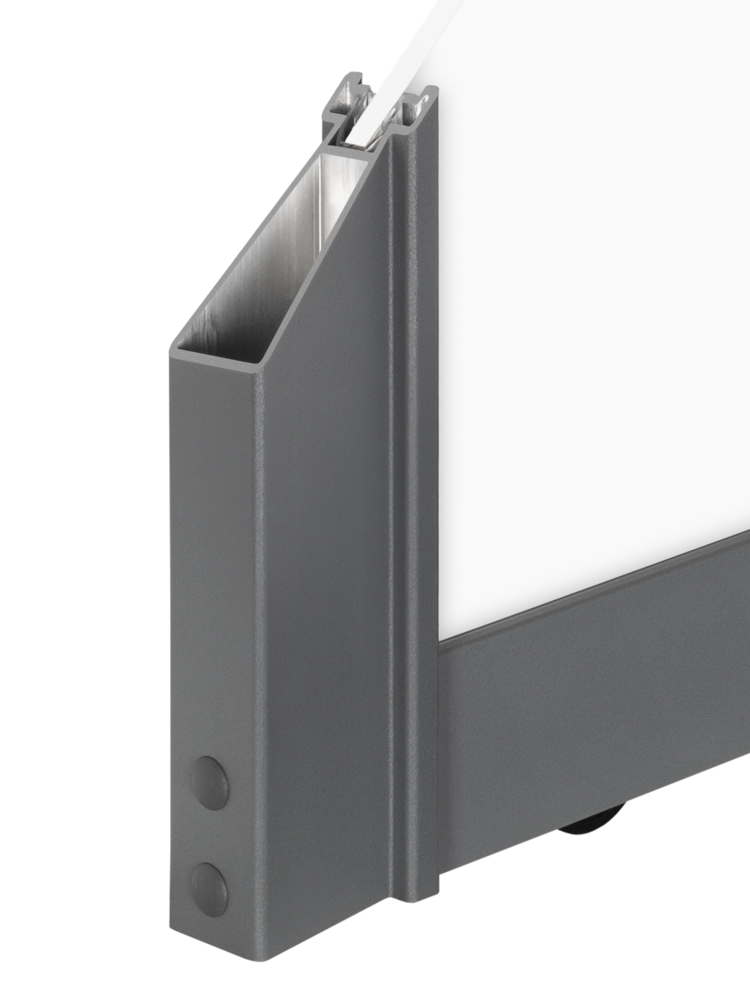

Estetic, our most stable premium aluminum framed sliding door, with a wide and grip friendly frame. The frame is centric, looks the same on both sides, which makes it perfect as a room divider or door into a walk-in closet. Large selection of options and design possibilities including exclusive frame colors Sanded gray, Innocent birch and Weathered grey oak.

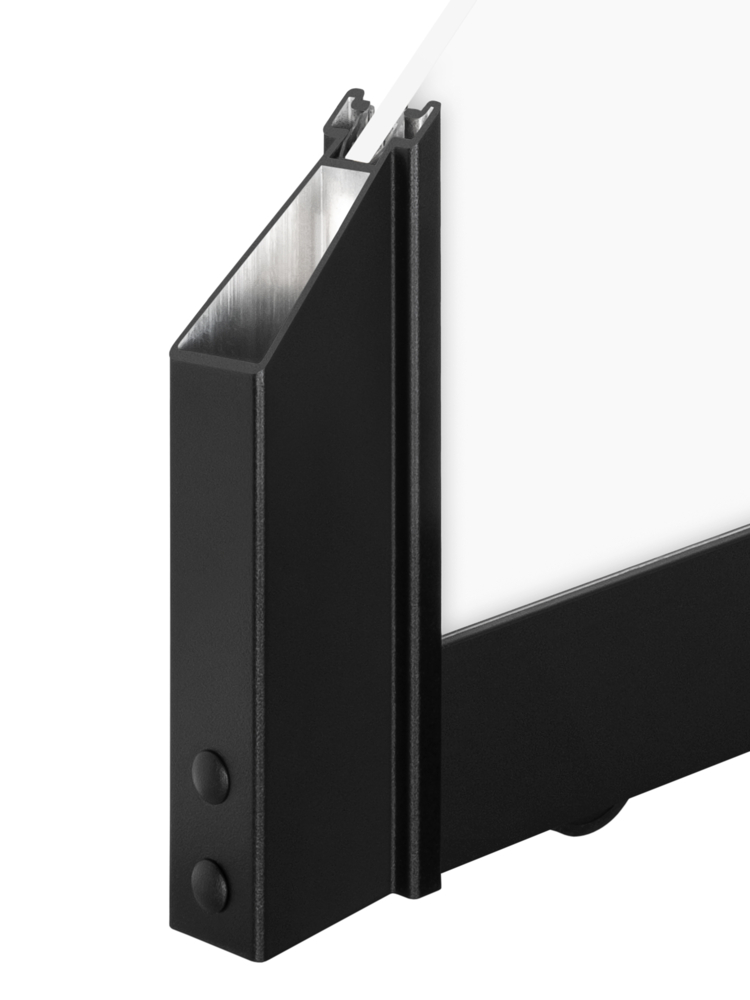

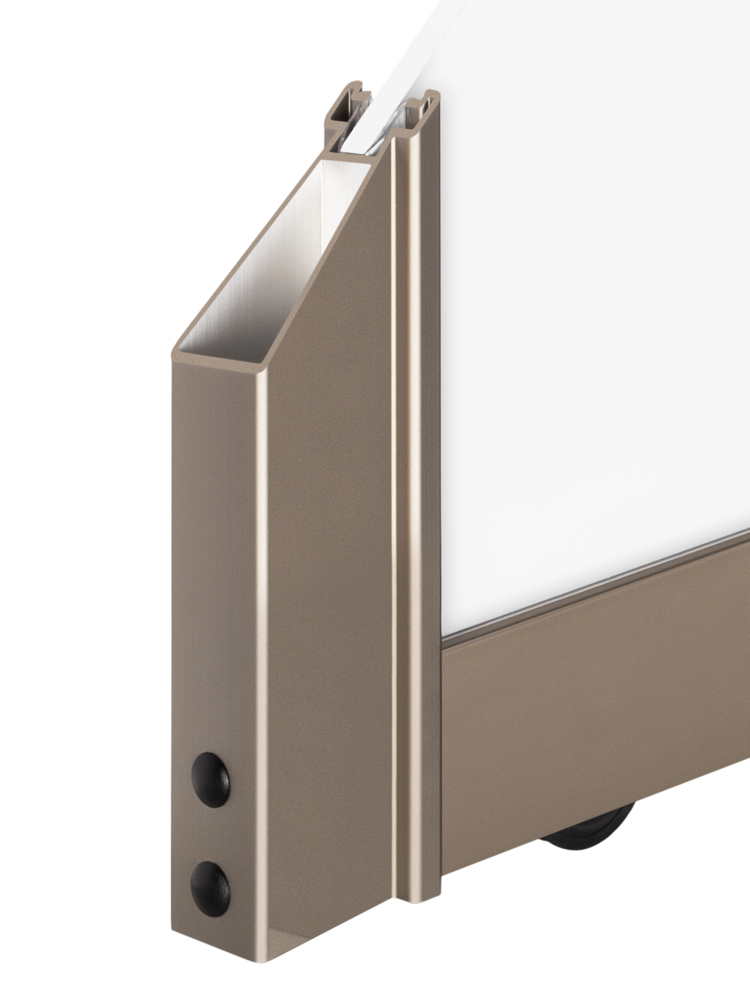

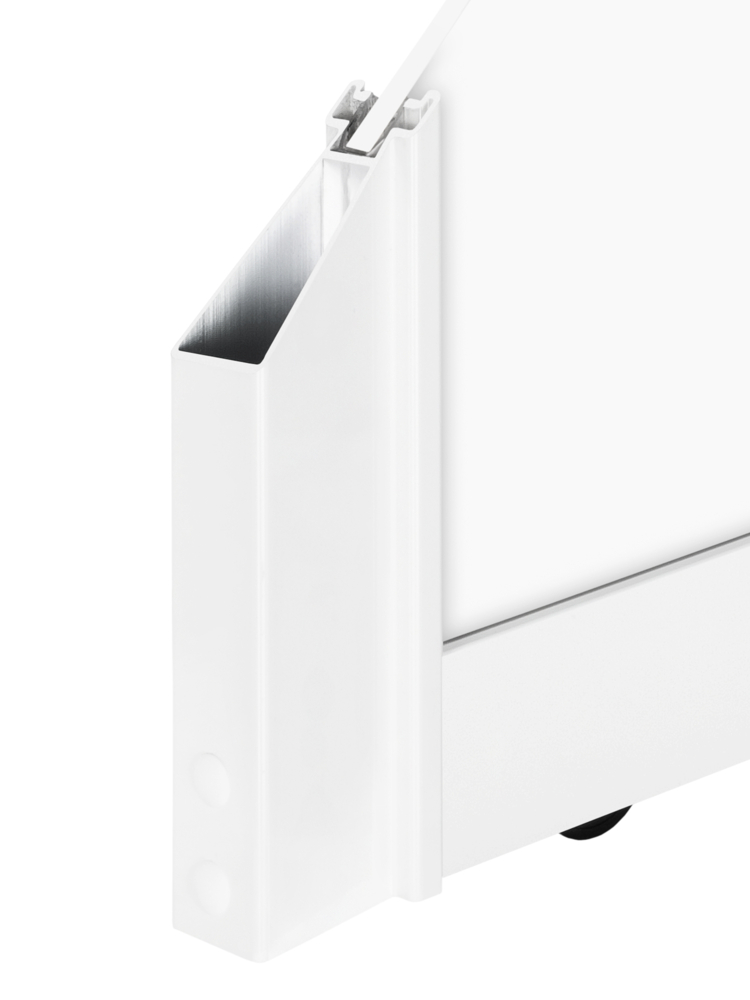

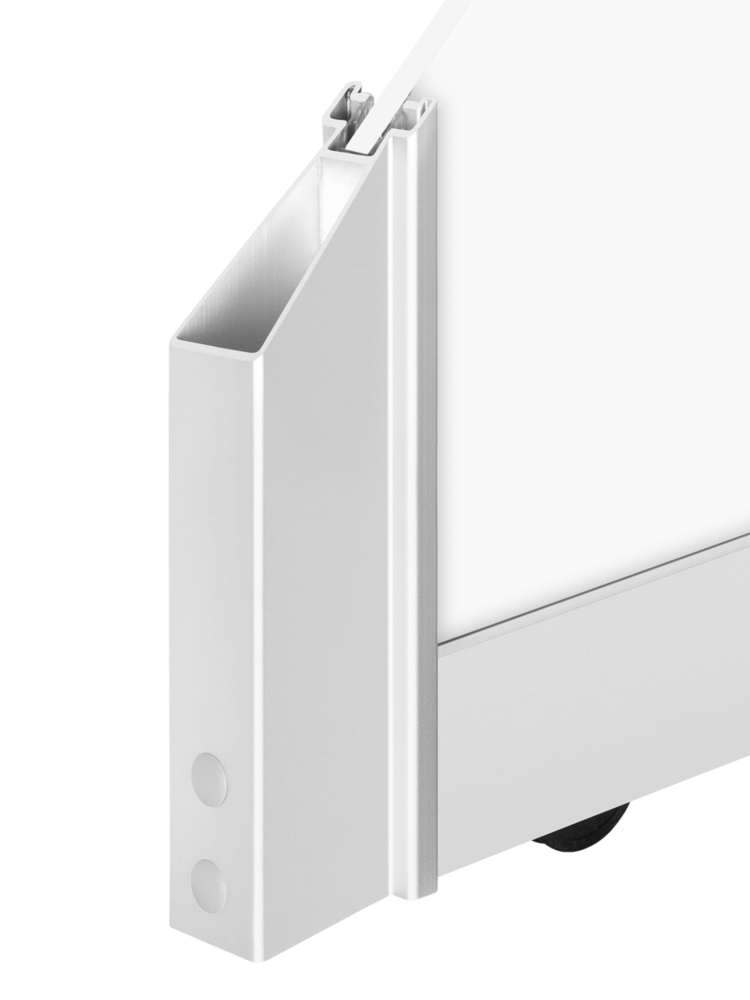

Wide and grip friendly frame with wide assortment of colors
Choose between all fillings and designs
Soft closing included

Consumer.How To Measure

Consumer.CalculateYourPrice Find reseller

Fillings

Frame

Design

Installation options

Consumer.Tracksets

Options

Facts about

Consumer.Documents

Single track set

The Double track set can on request be changed into a Single track set up to twice the width of the door(s) at no extra cost. Perfect if you wish to use the sliding door as a door into a room and therefore want it to run on an extra long rail. Solution ordered as room divider are delivered with two Top track fronts, as the top track is visible on both sides. Note! Please specify Single track set when ordering.

More info

Double track set

As standard all made-to-measure sliding doors are delivered with a Double track set, including a bottom track to be screwed or taped on the floor, and a Top track to be screwed in the ceiling.

More info

Triple track set

For three door solutions you can replace the supplied Double track set with a Triple track set. Each door then has its own track, which allows you to open a larger part of the closet at the same time. The Triple track set is an additional option and not available for wall hung solutions or Free floor doors.

More info

Free floor, 2 tracks

A sliding door solution mounted in a Double track in the ceiling. A small steering pin mounted on the floor keeping the doors in position. As there is no bottom track there are no boundaries. Free floor is the perfect option to be combined with a Room divider solution. * Solution ordered as room divider are delivered with two Top track fronts, as the top track is visible on both sides.

More info

Measurements

Consumer.Tracksets (Depth (mm) mm)	Consumer.Top Track 1 front	Consumer.Top Track 2 fronter**	Consumer.Bottom track	Consumer.Top Track (Height mm)
Single track set	54,4	50,0	9,5	60,0
Double track set	97,0	50,0	9,5	102,5
Triple track set	139,5	50,0	9,5	145,0
Free floor, 2 tracks	112,0	91,0		114,0

Single track set

The Double track set can on request be changed into a Single track set up to twice the width of the door(s) at no extra cost. Perfect if you wish to use the sliding door as a door into a room and therefore want it to run on an extra long rail. Solution ordered as room divider are delivered with two Top track fronts, as the top track is visible on both sides. Note! Please specify Single track set when ordering.

More info

Double track set

As standard all made-to-measure sliding doors are delivered with a Double track set, including a bottom track to be screwed or taped on the floor, and a Top track to be screwed in the ceiling.

More info

Triple track set

For three door solutions you can replace the supplied Double track set with a Triple track set. Each door then has its own track, which allows you to open a larger part of the closet at the same time. The Triple track set is an additional option and not available for wall hung solutions or Free floor doors.

More info

Free floor, 2 tracks

A sliding door solution mounted in a Double track in the ceiling. A small steering pin mounted on the floor keeping the doors in position. As there is no bottom track there are no boundaries. Free floor is the perfect option to be combined with a Room divider solution. * Solution ordered as room divider are delivered with two Top track fronts, as the top track is visible on both sides.

More info

Measurements

Consumer.Tracksets (Depth (mm) mm)	Consumer.Top Track 1 front	Consumer.Top Track 2 fronter**	Consumer.Bottom track	Consumer.Top Track (Height mm)
Single track set	54,4	50,0	9,5	60,0
Double track set	97,0	50,0	9,5	102,5
Triple track set	139,5	50,0	9,5	145,0
Free floor, 2 tracks	112,0	91,0		114,0

Measurements

Width per door: 600-1600 mm

Height: 400-3300 mm

Top track cover

Bottom track cover

Overlap

Overlap: 56 mm

Divider height

31,5 mm

Rail (upper/lower)

53 mm

Filling limitations in design Plain MO, M1, W1: max height 2700 mm (M1 Glossy white (40056): Max height 2564 mm) M2, S1, S2: max height 2564 mm W2: max height 2536 mm G1, G2, G3: max height 2674 mm

Extra high doors Doors with height between 2701-3300 mm are considered as extra high doors. Choose all models and fillings except for the model Plain.

Extra wide doors Doors between 1247-1600 mm are considered as extra wide doors. Max. height/designs for extra wide doors Plain - max. height 1200 mm Duo, Trio expand - max. height 2500 mm Adapt - max. height/field - 1200 mm Note! Wood melamine and Wood veneer - horizontal wood grain.
